Liquid Polymer Activation
While the rest of the polymer equipment industry was engaged in a mechanical versus nonmechanical system debate, VeloDyne developed the next generation of advanced polymer activation technologies, a hybrid of the two approaches.
We started by perfecting hydro-dynamic, non-mechanical mixing energy, resolving thirty-year-old weaknesses of this technology. We then eliminated the biggest draw-back to non-mechanical blending — its reliance on water pressure. Since the VeloBlend's introduction, polymer blending was changed forever — so much so that our unique VeloBlend mixing chamber technology was granted a U.S. patent. The VeloBlendTM hybrid polymer activation technology combines the reliability of non-mechanical mixing energy with controllable, variable speed hydromechanical mixing energy. This allows for precise control of mixing conditions, allowing you optimize the performance of any polymer available, while not relying on water pressure to do so.
VeloBlend Series VM2400 (Skid 1 configuration)
- Patented Hybrid Polymer Activation Technology
- Progressive cavity pump, from 0.025 to 24 GPH neat polymer
- Dilution water from .2 to 40 GPM
- Discrete or PLC control (see brochure under the documents button for options)
- Rugged compact frame
- Open Accessibility to All Components
VeloBlend Series VM6000 (Skid 2 configuration)
- Patented Hybrid Polymer Activation Technology
- Progressive cavity pump, from 0.025 to 60 GPH neat polymer
- Dilution water from .2 to 100 GPM
- Discrete or PLC control (see brochure under the documents button for options)
- Rugged frame designed with ability to add instrument and control options
- Open Accessibility to All Components

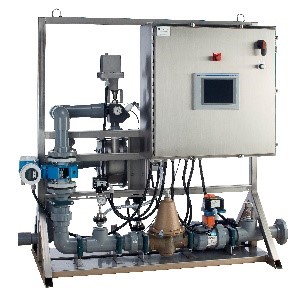

VeloBlend Series VM12000 (Skid 3 configuration)
- Patented Hybrid Polymer Activation Technology
- Progressive cavity pump, from 2.5 to 120 GPH neat polymer
- Dilution water from 15 to 200 GPM
- Discrete or PLC control (see brochure under the documents button for options)
- Rugged frame designed with ability to add instrument and control options
- Open Accessibility to All Components
VeloBlend Series VM36000 (Skid 4 configuration)
- Patented Hybrid Polymer Activation Technology
- Progressive cavity pump, from 4.5 to 360 GPH neat polymer
- Dilution water from 30 to 600 GPM
- Discrete or PLC control (see brochure under the documents button for options)
- Rugged frame designed with ability to add instrument and control options
- Open Accessibility to All Components
